Inside Post Mount to Level

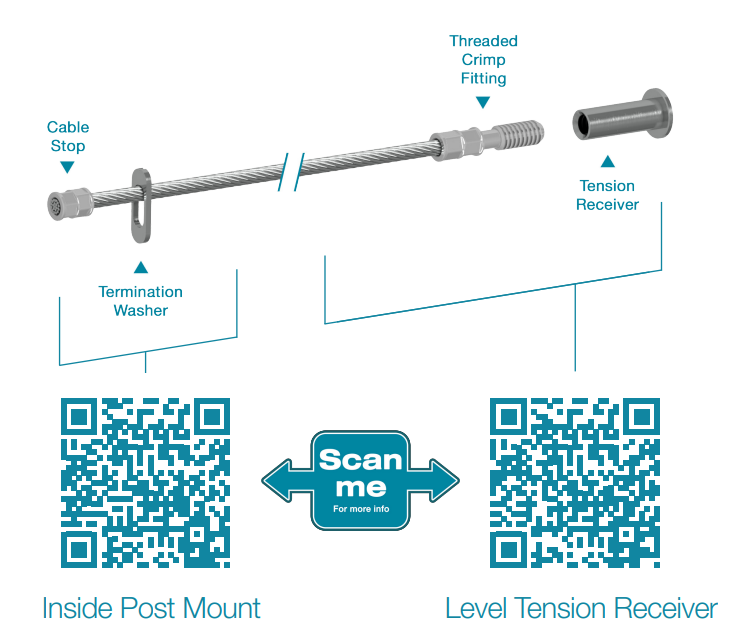

Take the loose end of your cable spool & slide the cable through the post that will receive the Level Tension Kit

Pass the cable all the way down the run, through any intermediate posts, until it meets the end of the run

If needed, adjust the die setting on the head of the crimping tool so that it shows a “1” and an “8” on both sides as shown above

Slide the loose end of the cable through the Termination Washer, and into the Cable Stop

Crimp the Cable Stop on to the end of the cable, then turn it 90° and crimp it again

Insert the Cable Stop into the 5 /16" hole

Then turn the Termination Washer (shown above) and slide it into the 5 /16" hole as well

Pull the cable back and the Cable Stop and Termination Washer will lock against the inside of the post

Return to the other end of the run where the Level Tension Kit will be installed nearest the spool, and pull the cable tight for the full run

Place painter’s tape on the cable where the cable meets the inside edge of the post

Use the side cutting tool located below the main crimping head to cut your cable

Slide the cable through the cable cutter and cut the cable 3" - 4" extra past the outside edge of the post

Remove the cable from the post

Add and mark ½" past the painter’s tape

Cut the cable on this mark

If needed, adjust the die setting on the head of the crimping tool so that it shows a “1” and an “8” on both sides as shown above

Crimp a Threaded Crimp fitting onto the second end of the cable

Crimp the Threaded Crimp Fitting then turn it 90° and crimp it again

Insert the Threaded Crimp Fitting into the ½" hole on the inside face of the post

Then, insert the Tension Receiver into the ½" hole on the outside face of the post

Meet both in the middle of the post and thread the Tension Receiver onto the Crimp Fitting four full turns

Slide the protective Neoprene Sleeve onto the cable near the post you are working on

Firmly grasp the sleeve with pliers and use the supplied 3 /16" Allen wrench to tighten the Tension Receiver only snug enough to hold in place

After all the cable runs are done use the Allen wrench to tighten the Level Tension Kit side of the cable run in sequence

Holding the cable with the pliers & neoprene sleeve, tighten until the cable is taut and then turn the Tension Receiver another half turn
